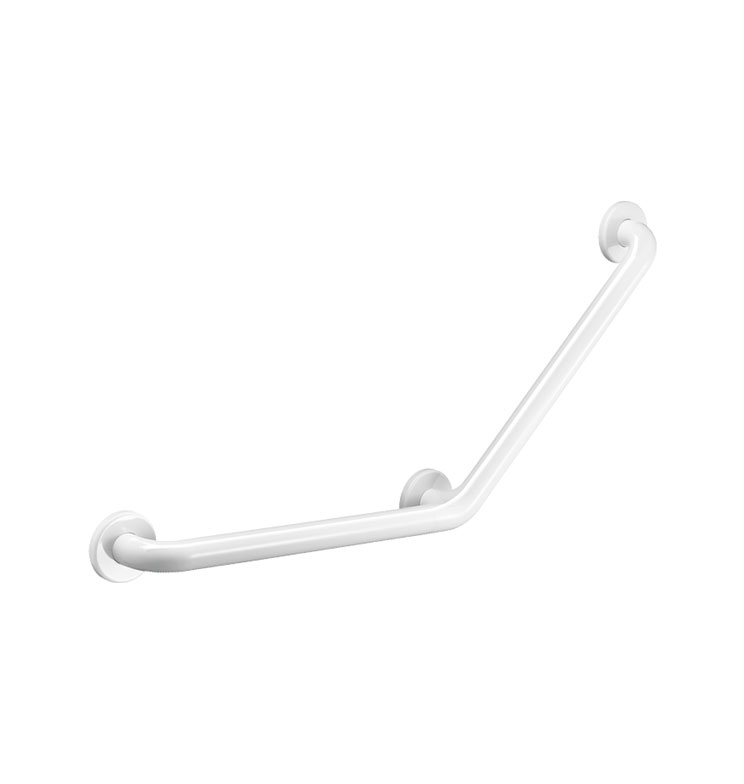

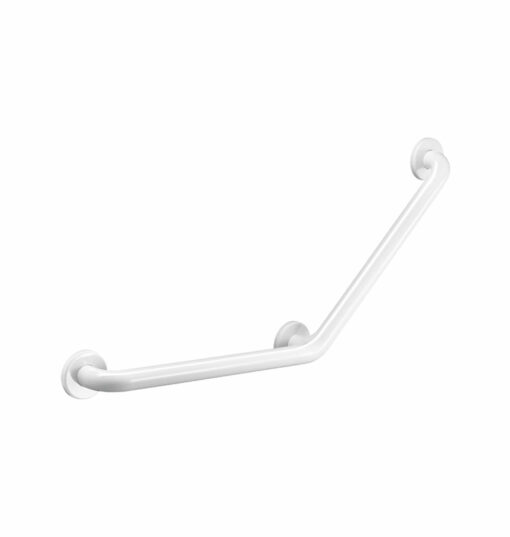

Angle handle 135°, 400 x 400 mm - white

Angled handle 135° Ø 32 for persons with restricted mobility.
Provides support (horizontal part) or help to stand up (angled part 135°) in WC, shower or bath.
Can be mounted on the left or right side.

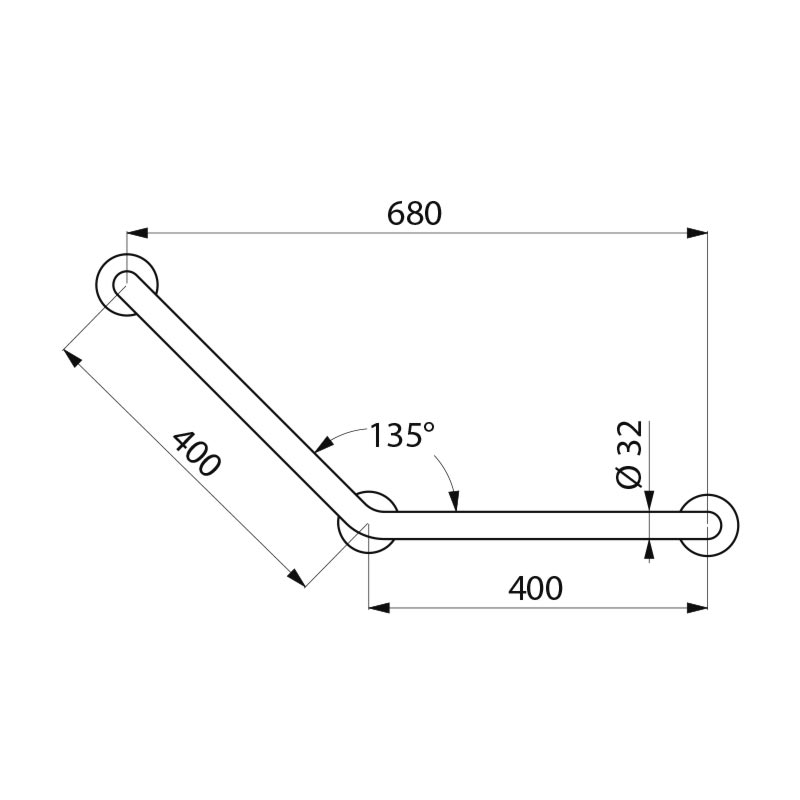

Dimensions: 400 x 400 mm.
Bacteriostatic stainless steel tube material 1.4301, surface powder-coated white.
Wall flange and pipe joined by invisible safety weld (exclusive "ArN-Securit" process).
40 mm distance between handle and wall: minimal space requirement prevents pinching of the forearm and thus reduces the risk of bone fractures in case of falls.
3 fixing points: allows the handle to be locked in place and simplifies assembly.
Concealed fixings through three-hole wall flange, stainless steel material 1.4301, Ø 72.
Flange and rosette made of stainless steel material 1.4301.
Stainless steel screws for solid wall included.
Tested to more than 250 kg. Recommended maximum weight of the user: 170 kg.
