Urinal flush valve, electronic with battery operation, TEMPOMATIC 4, glass ceramic black, 430036**

Electronic flush valve TEMPOMATIC 4 G 1/2, set 2/2 (prefabricated set).
Operation with 6V lithium batteries type CR 17345.
Opening and closing of the water by solenoid valve.

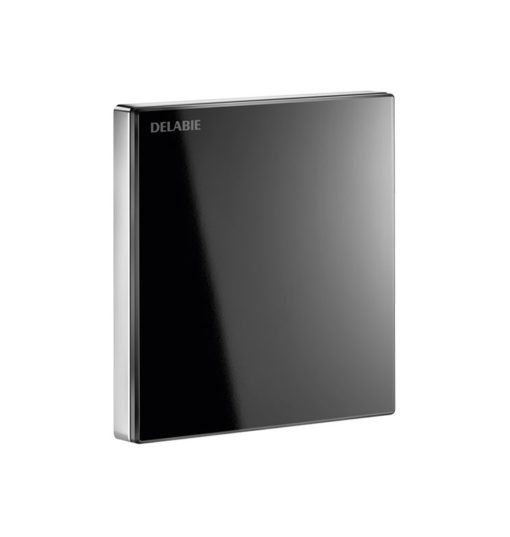

Black flush plate made of safety glass 145 x 145 mm with integrated electronics.
Shockproof infrared sensor with presence detection.
Detection after 10 seconds of presence.
3 programmes (flush volume can be adjusted according to the urinal model).
Rush hour programme (exclusively from DELABIE):

• Short rinse after each use.
• Additional flushing after the rush hour.

Hygiene flush every 24 h (can be set to 12 h or deactivated) after the last use: prevents the odour trap from drying out.
Flush volume preset to 0.15 l/sec. at 3 bar, adjustable.
TEMPOMATIC 4 G 1/2 flush valve compatible with salt, rain and grey water.
Installation in watertight box with flange with integrated seal, protective filter and pre-shut-off.
Suitable for people with limited mobility.
