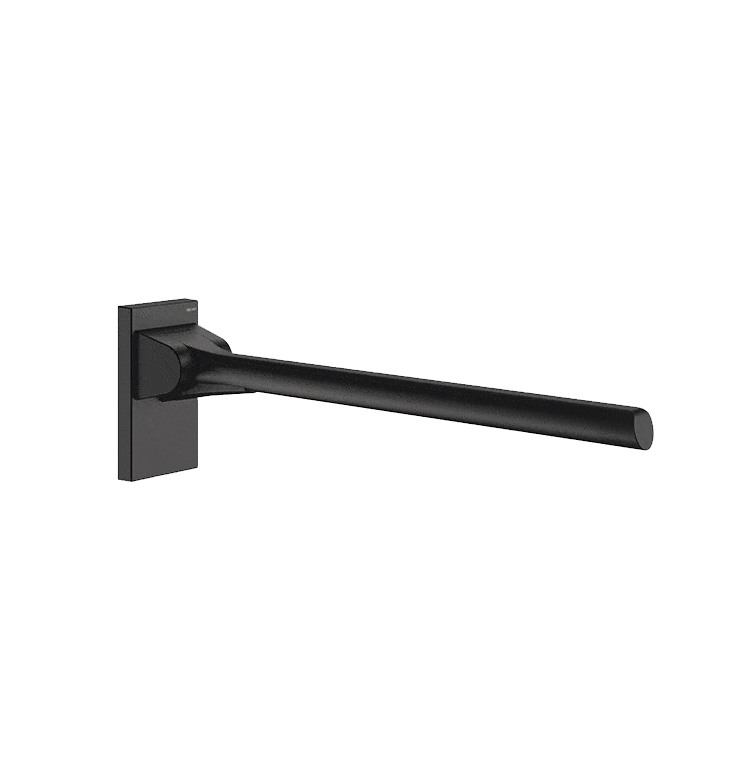

Folding support handle Be-Line for persons with reduced mobility.
When folded down, provides support and assistance when standing up and transferring for WC or shower.
Allows side access in the raised position.
Removable: easy to clip off, with anti-theft device. Number of handles in public facilities as well as post-installation as required.
Example: Hotels or hospitals that only accommodate people with limited mobility from time to time.
Folding handle with braked folding down and locking in vertical position.
Aluminium tube.
Rounded profile Ø 42 with ergonomic, flat front: prevents twisting of the hand on the handle and ensures optimum grip safety.
Powder-coated matt black surface for visually contrasting design with light-coloured walls.
Homogeneous surface facilitates cleaning and ensures better hygiene.
Concealed fixings by stainless steel plate material 1.4301, thickness 5 mm.
Stainless steel screws Ø 8 x 70 mm for solid wall included.

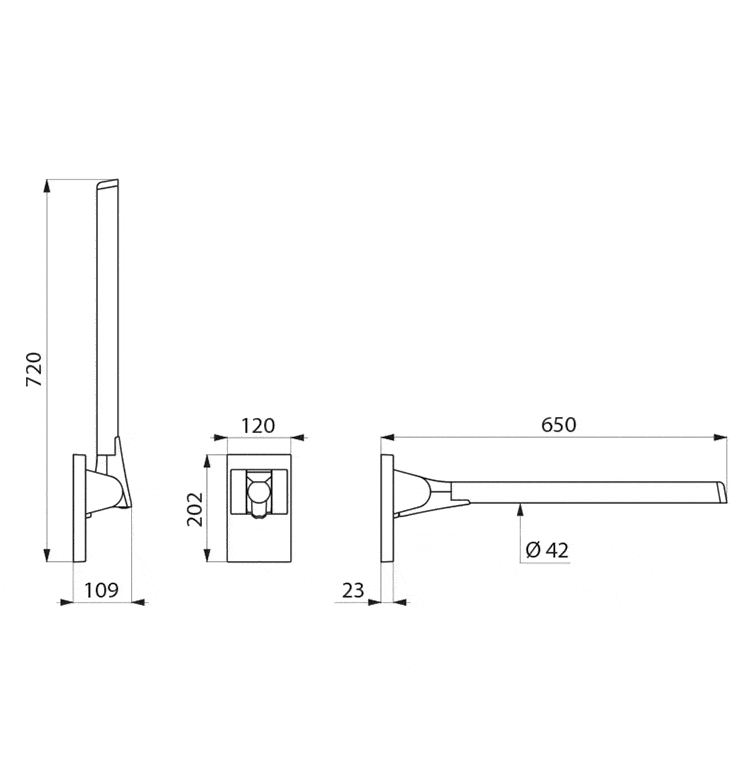

Dimensions: 650 x 210 x 120 mm.
Tested to more than 200 kg. Recommended maximum weight of the user: 135 kg.
Files and downloads:
DATA SHEET: | |
Technical drawing: |
