Inst.Sys.TEMPOFIX 3 UR electr. batt. or self-closing D35 Set1/2

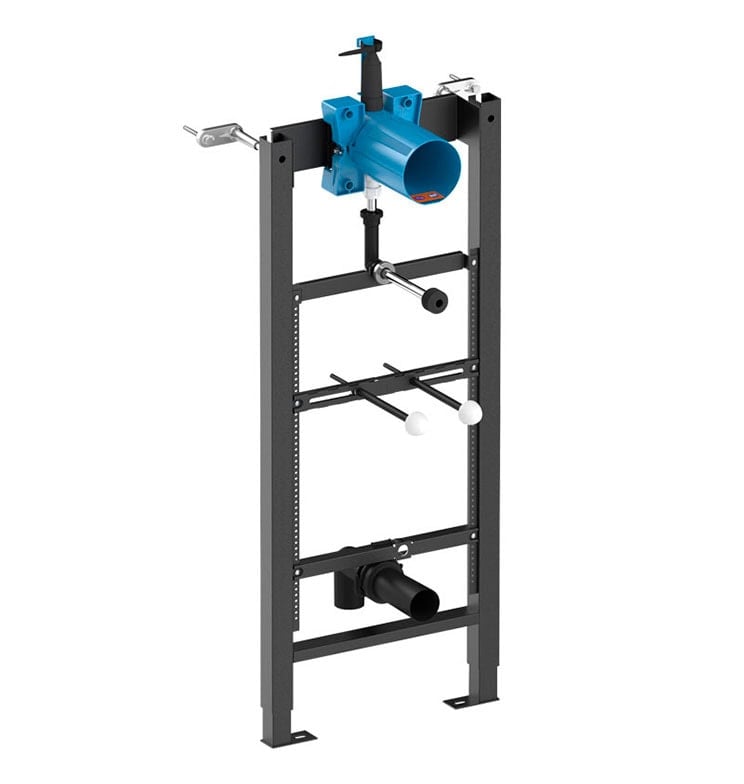

Installation system for urinal Ø 35, set 1/2 (shell set):
Black powder-coated steel frame for pre-wall mounting.
Fastening to the floor and in load-bearing walls using metal dowels (included in the scope of delivery).

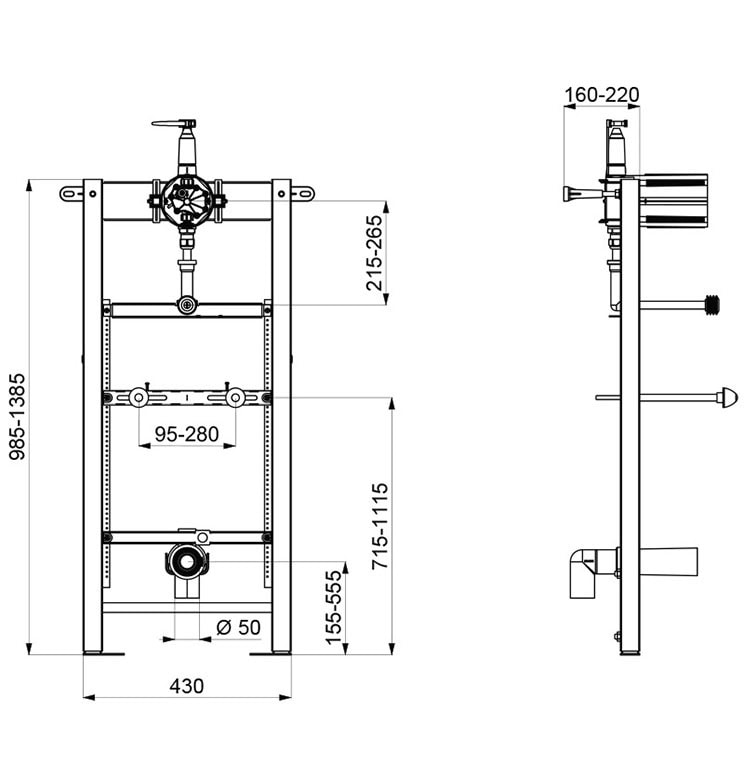

Centre distance adjustable from 95 to 280 mm.
Height adjustable by telescopic frame from 0 to 200 mm.
Drain pipe Ø 50 with push-fit socket and flush pipe with flush pipe connector Ø 35.
Supplied pre-assembled.
Meets the requirements of standard NF D12-208 (load test).
Suitable for wall constructions from 13 to 120 mm.
Flush-mounted box included in the scope of delivery.
Fitting configured for flushing the pipework, with protection and connection accessories.
Order with flush plates item numbers 430006, 430016, 430026, 430036, 778700 or 778707.
