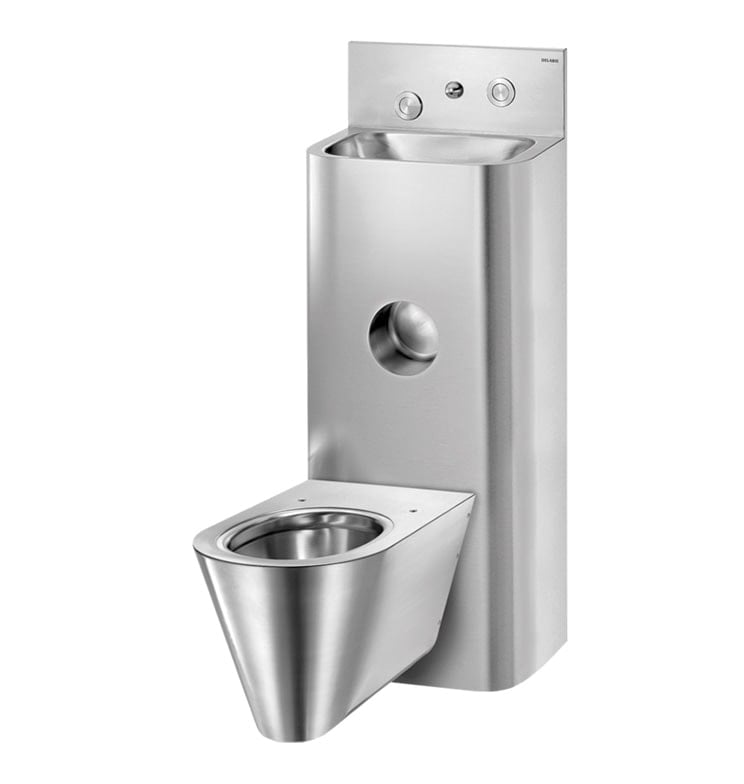

Prison combination KOMPACT TC, rear wall mounting, with washbasins and suspended WC, centralised

Prison unit, WC suspended, left, rear wall mounting

Prison combination with washbasin and suspended WC in the centre, with integrated WC paper roll compartment.
For rear wall mounting (requires accessible supply room).
Bacteriostatic stainless steel material 1.4301.
Satin finish.
Material thickness: 2 mm.
Corners and edges rounded for high user safety.
Smooth surface for easy cleaning.
Suitable for use in prisons, custody cells, etc.
WC completely welded to the enclosure body, not screwed: facilitates cleaning and protects against concealment of objects.
Washbasin with self-closing valve: vandal-resistant push button made of stainless steel with anti-blocking safety, running time 7 seconds, G 1/2B.
WC with flush valve, flush time 7 seconds, G 3/4B.

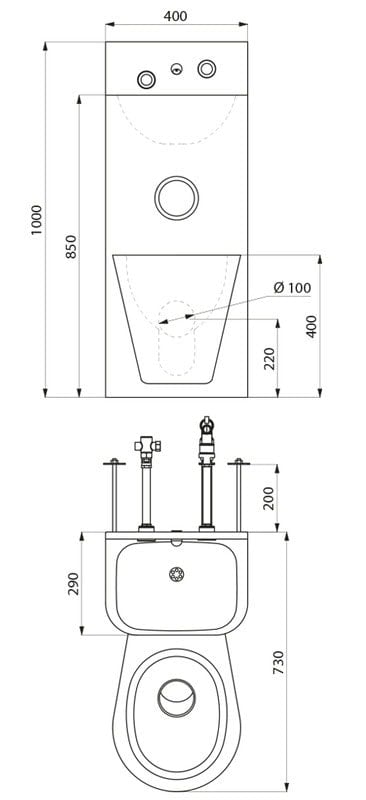

Water connection: Washbasin G 1/2B, WC G 3/4B.
Outlet inside horizontal Ø 100 mm.
Cut-to-size threaded rod 200 mm (other lengths on request.
Simple installation: only one drain for WC and washbasin, water-side and waste-water-side connections already pre-assembled.
Weight: 30 kg.

Advantages at a glance:

Suitable for use in the security sector
